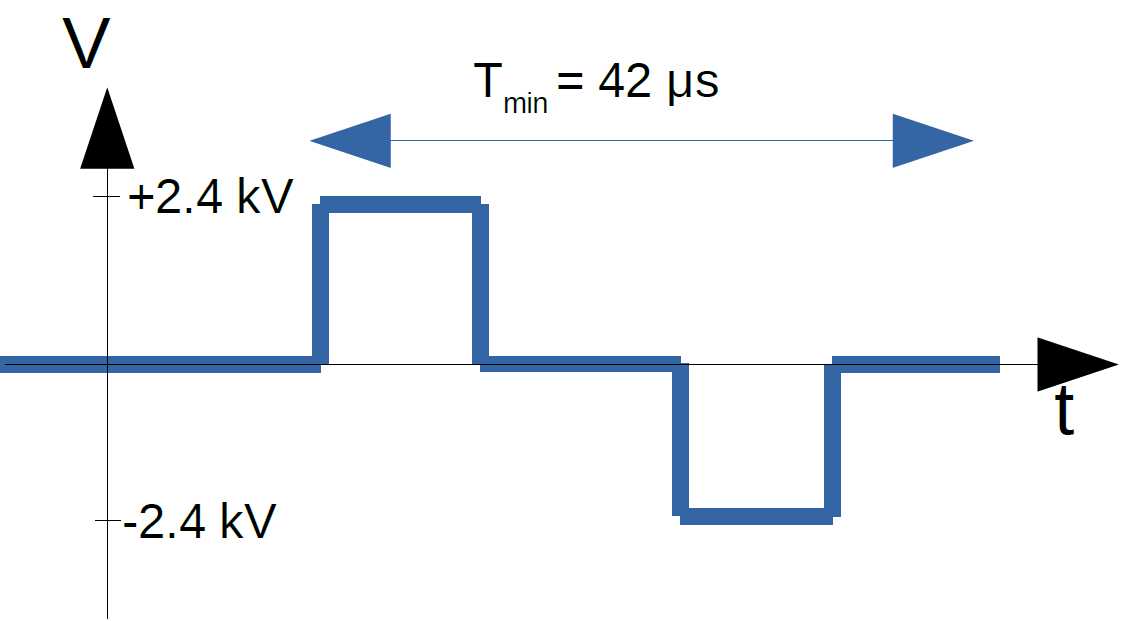

Bipolar pulses
Outputs an alterance of positive and negative high voltage pulses
Configurable amplitude
Continusouly adjustable between 0 and ±2.4 kV
up to 24 kHz repetion rate
Of the entire waveform
Ultra-fast rise time
10%-90% in <40 ns (measured on real sample with C<200pF)
alternate text

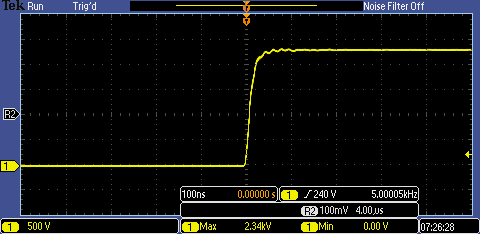

Rising edge measured on an 80 pF capacitive sample at the end of a 1.5 m 50 Ω coaxial cable. Horizontal scale: 100 ns/div. Vertical scale: 500V/div.
PLe ready
Complies to EN ISO-13849
